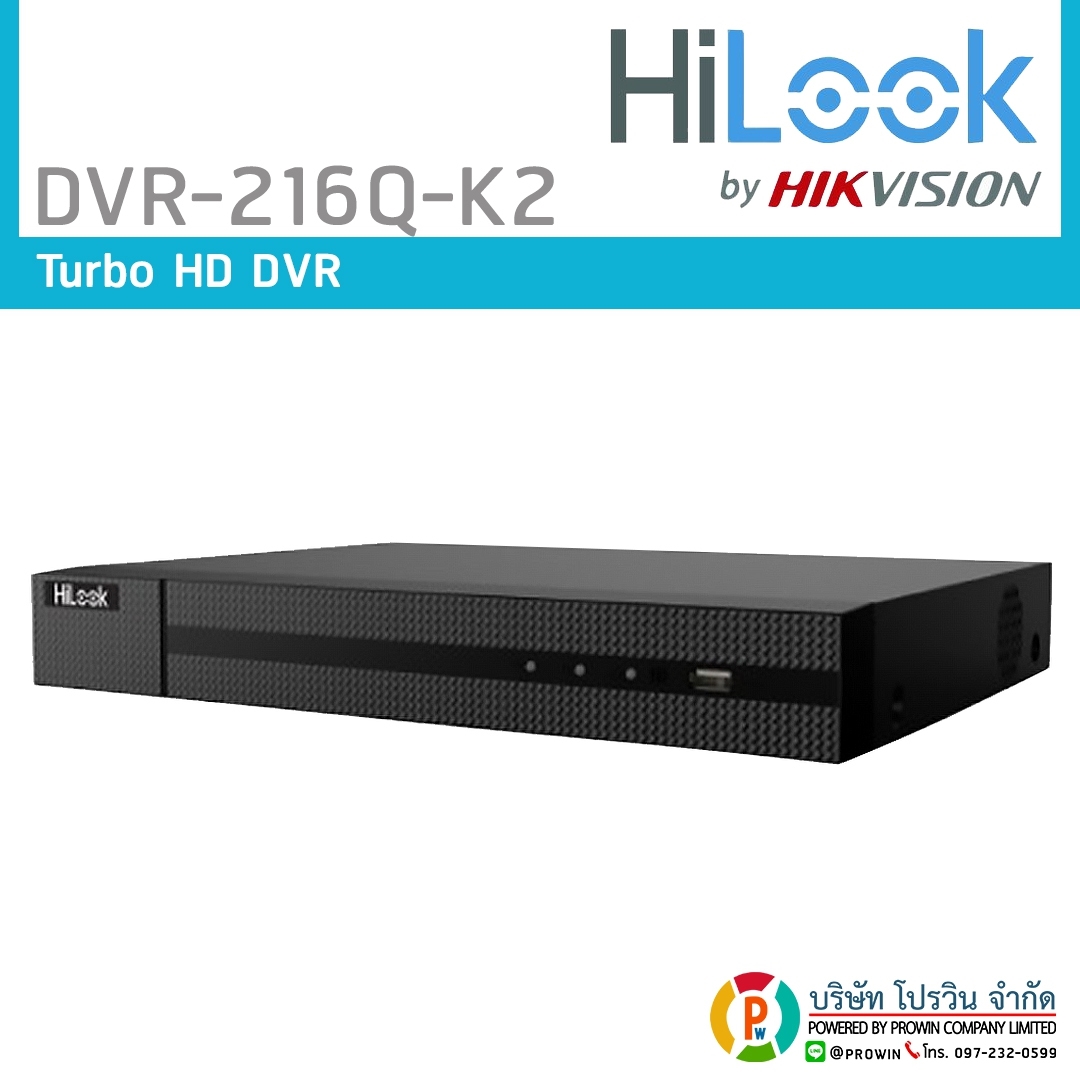

HiLOOK DVR-216Q-K2
รายละเอียดสินค้า
Turbo HD DVR
Video Input and Transmission
l Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
l Up to 12/24-ch 6 MP IP cameras input for DVR-208/216Q-K2
l Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
l H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
l Connectable to H.265+/H.265/H.264+/H.264 IP cameras
l H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
l Up to 4 MP lite resolution for recording
Video Output
l Simultaneous HDMI/VGA output
l HDMI output at up to 4K (3840 × 2160) resolution for DVR-216Q-K2
Storage and Playback
l Two SATA interfaces (up to 10 TB capacity per HDD)
l 4/8/16-ch synchronous playback
l Smart search for efficient playback
l Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
l Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
l Supports 4-ch line crossing detection and intrusion detection
l VQD (Video Quality Diagnostics)
Network & Ethernet Access
l Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
l 1 RJ45 10M/100M Ethernet network interface for DVR-208Q-K2, and 1 RJ45 10M/100M/1000M Ethernet network interface for DVR-216Q-K2
l Output bandwidth limit configurable
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Analog Video Input: | 16-ch | |
| Analog and HD-TVI video input: | Support HDTVI input: 4MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for the first 4 channels of DVR-216Q-K2. |
|
| Supported camera types: | Support AHD input: 1080p25, 1080p30, 720p25, 720p30 Support CVI input: 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC |
|
| IP Video Input: | 8-ch (up to 24-ch) | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| IP Video Input Resolution: | Up to 6 MP resolution | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | |
| Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA Output: | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
| Encoding resolution: | When 1080p Lite mode not enabled: 4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode enabled: 1080p lite/720p/VGA/WD1/4CIF/CIF |
|
| Frame Rate: | Main stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p….@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/...@25fps (P)/30fps (N) For 720p stream access: 720p/VGA...@25fps (P)/30fps (N) When 1080p Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
|
| Video Bit Rate: | 32 Kbps-6 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| Capacity: | Up to 10 TB capacity for each disk | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 25 W | |
| Working Temperature: | -10 oC to +55 oC (+14 oF to +131 oF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb) | |
