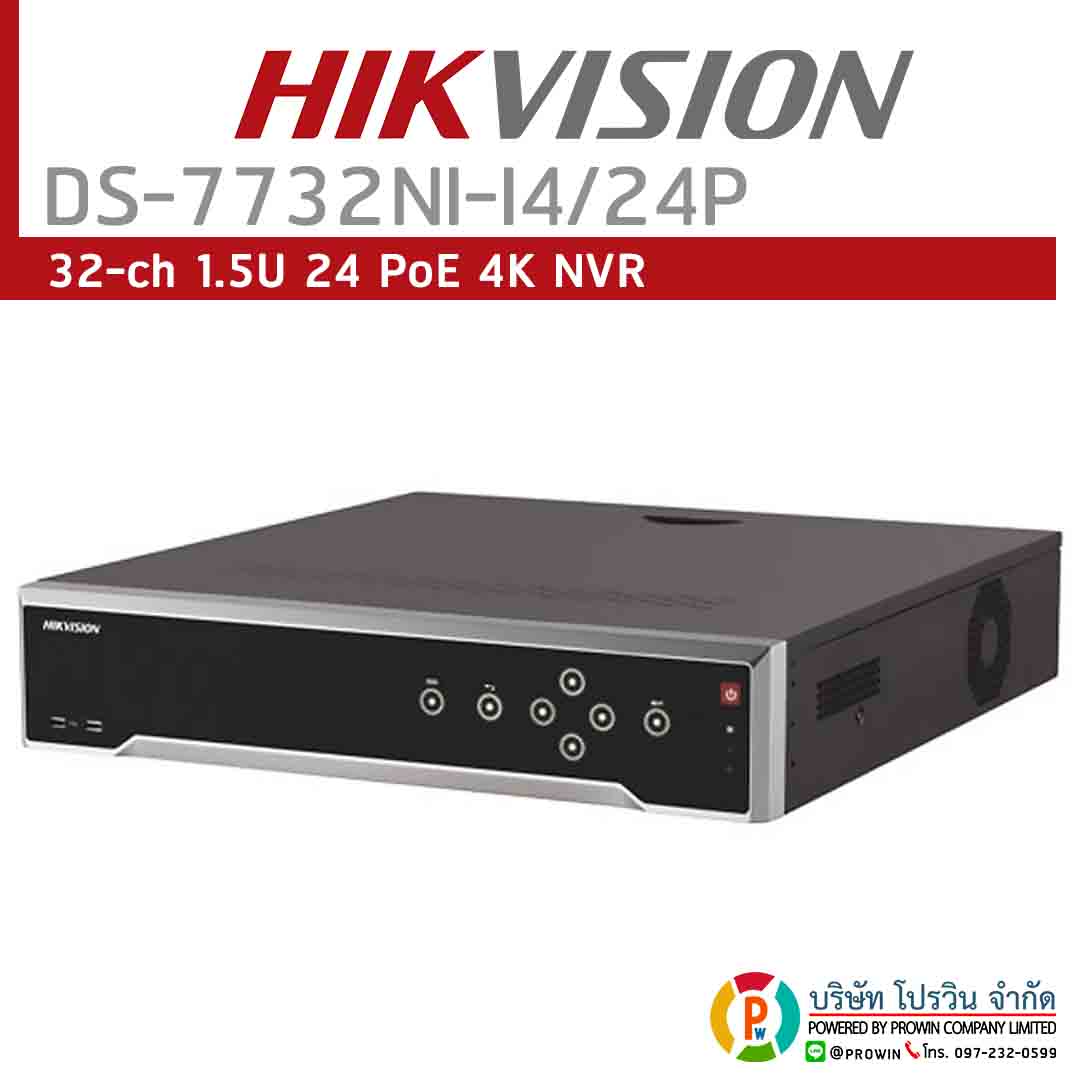

32-ch 1.5U 24 PoE 4K NVR

• Up to 32 channel IP cameras can be connected
• Supports decoding H.265+/H.265/H.264+/H.264 video formats
• Up to 12 MP high-definition live view, storage and playback
• Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
• Up to 320 Mbps high incoming bandwidth ensures IP cameras can be connected
• 2 HDMI and 1 VGA interfaces: HDMI interfaces support independent video output
• 4 HDDs for continuous video recording
• Compatible with third-party network cameras
• Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
• Video Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Capability2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (30fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

• Network
• Incoming/Outgoing Bandwidth256 Mbps,320Mbps
• Remote Connections128

• External Interface
• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Serial Port1 RS-485 (half-duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/4 (Optonal: 16/8)

• General
• Power Supply100 to 240 VAC,≤ 360 W
• Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity10 to 90 %
• Dimensions (W × D × H)445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
• Weight (Without Hard Disk)≤ 5 kg (11 lb)
• Consumption (Without HDD And PoE)≤ 20 W

• POE Interface
• Interface24 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
• Power≤ 210W
• Supported StandardIEEE 802.3 af/at

• Video/Audio Input
• IP Video Input32-ch,Up to 12 MP resolution
• Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Video/Audio Output
• HDMI 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• VGA1 /HDMI1 OutputHDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Network Management
• Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SNMP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Hard Disk
• SATA4 SATA interfaces for 4HDDs
• ESATA (Optional)1 eSATA interface
• CapacityUp to 8 TB capacity for each HDD
